Handheld displays are a flexible tool for spatial exploration of information spaces – users can physically navigate through that space to reveal information at specific locations. Having users hold them constantly, however, has several limitations: (1) inaccuracies due to the natural hand tremor; (2) fatigue over time; and (3) exploration limited within arm’s reach. In this paper, we investigate the use of autonomous, self-actuated displays that can freely move and hold their position and orientation in space without the need for users holding them at all times. We illustrate various stages of such a display’s autonomy ranging from manual to fully autonomous, which – depending on the tasks – facilitate the interaction. Further, we discuss possible motion control mechanisms for these displays and present several interaction techniques made possible by such displays. We designed a toolkit – Hover Pad – that enables exploring five degrees of freedom of self-actuated and autonomous displays and the developed control and interaction techniques. We illustrate the utility of our toolkit through five demonstration applications, such as a medical volumetric data explorer.

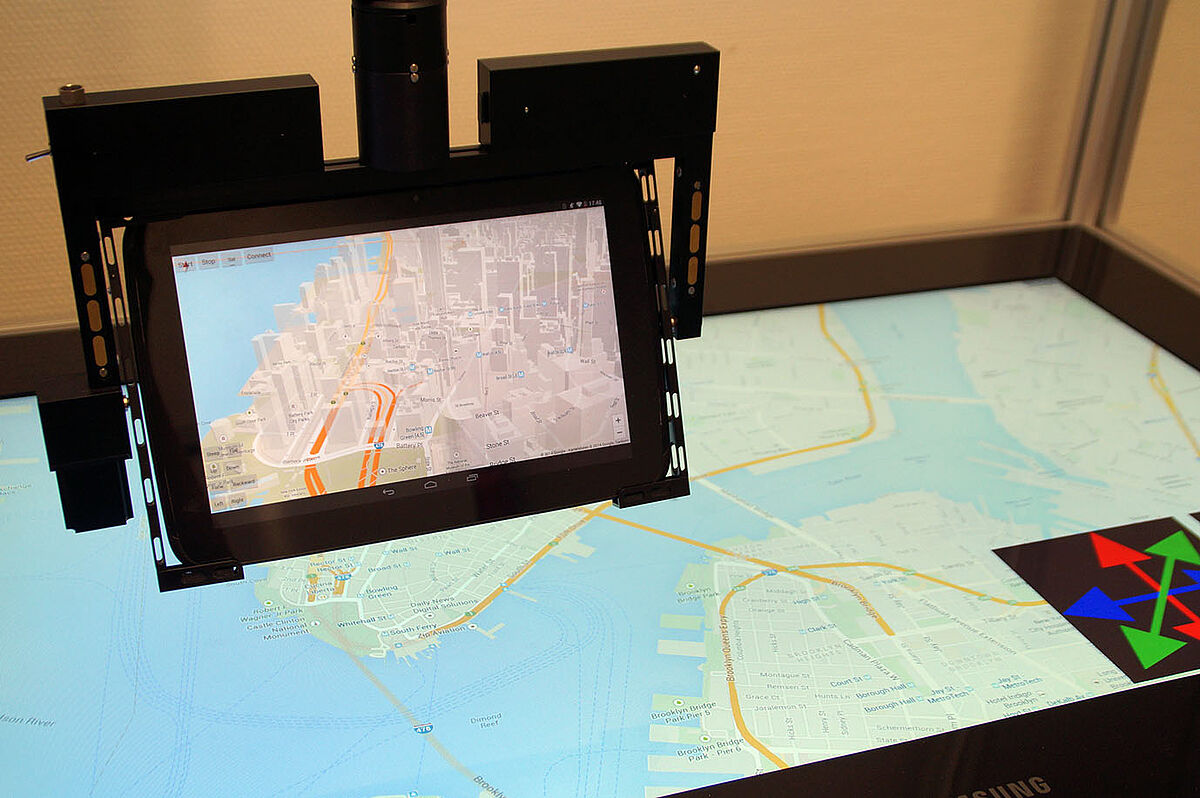

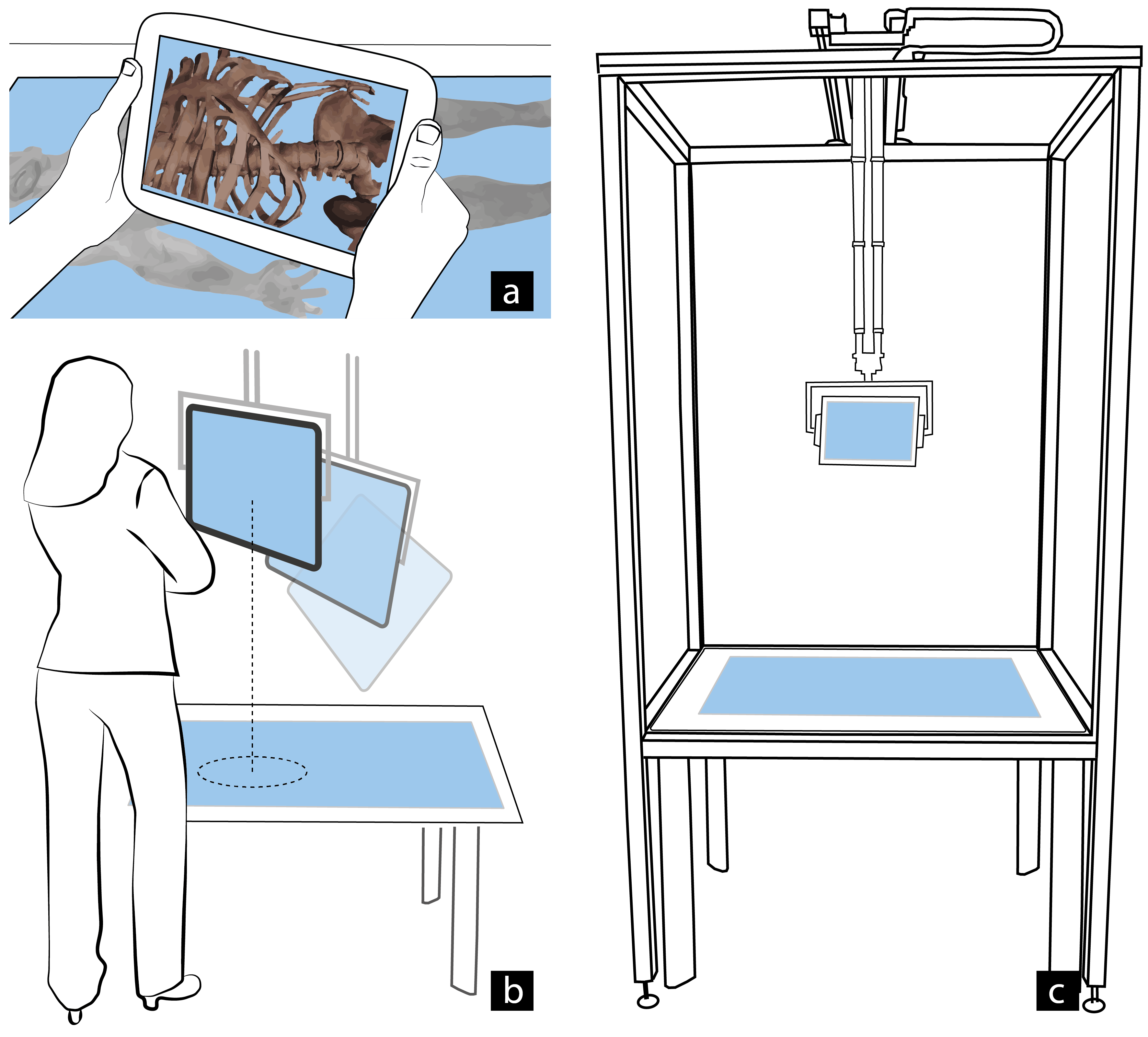

Handheld displays allow exploring volumetric data sets, yet users have to hold them in their hands at all times (a). Self-actuated and autonomous displays, on the other hand, free handheld displays from this requirement (b). Our prototype is a first realization of a self-actuated display that can autonomously move and hold its position (c).

Video

Hover Pad Toolkit

Hardware Construction Plans

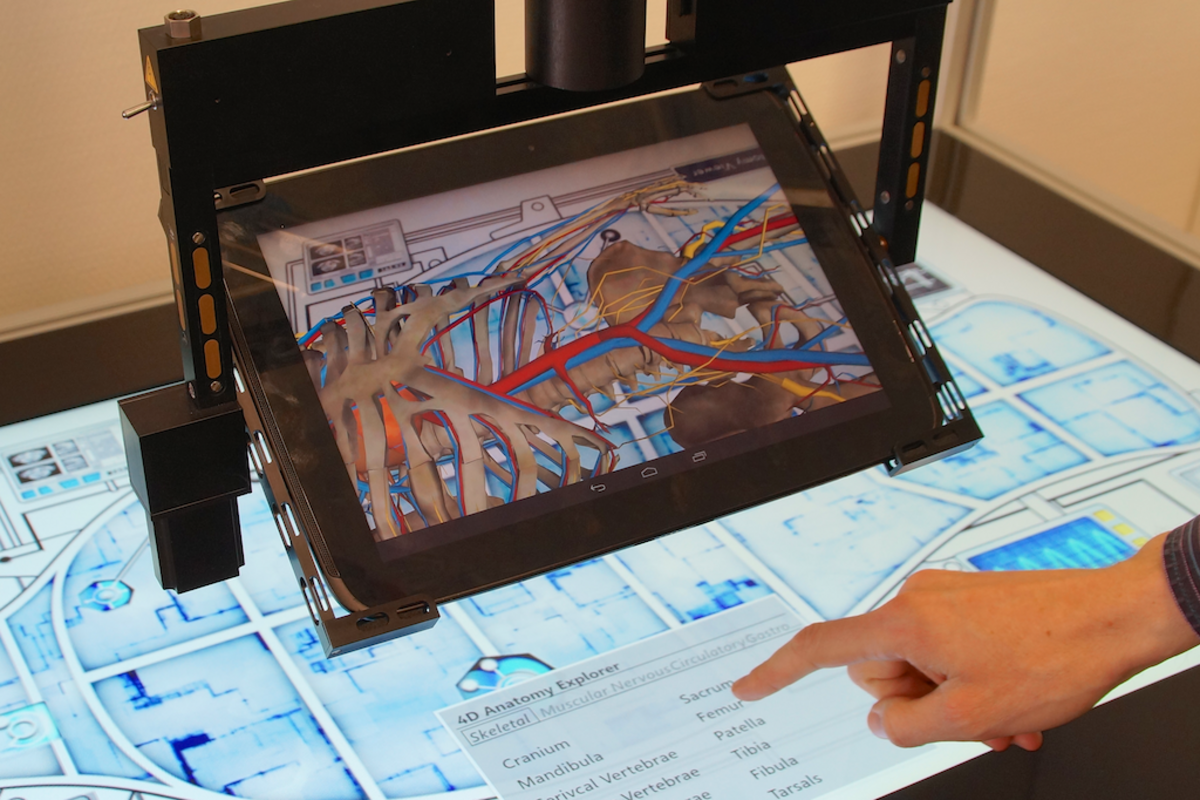

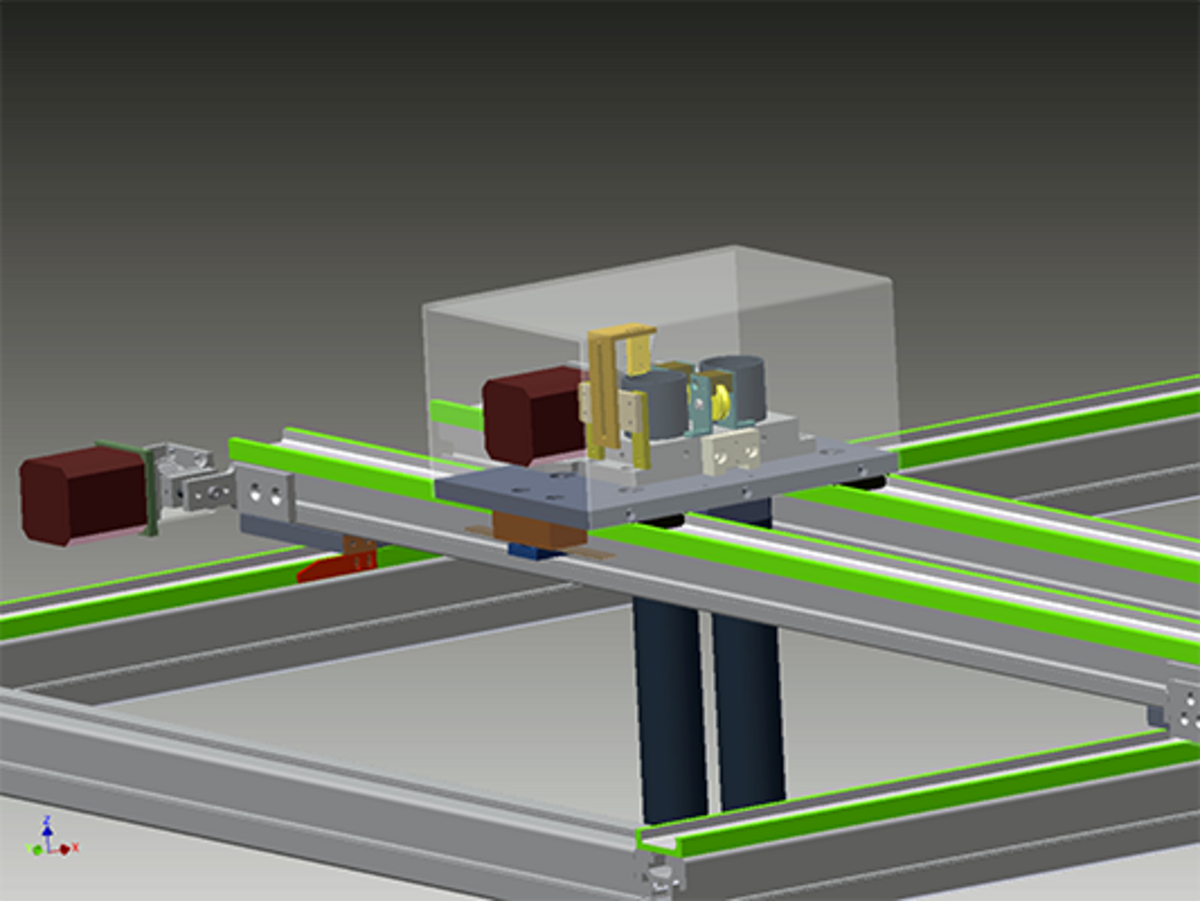

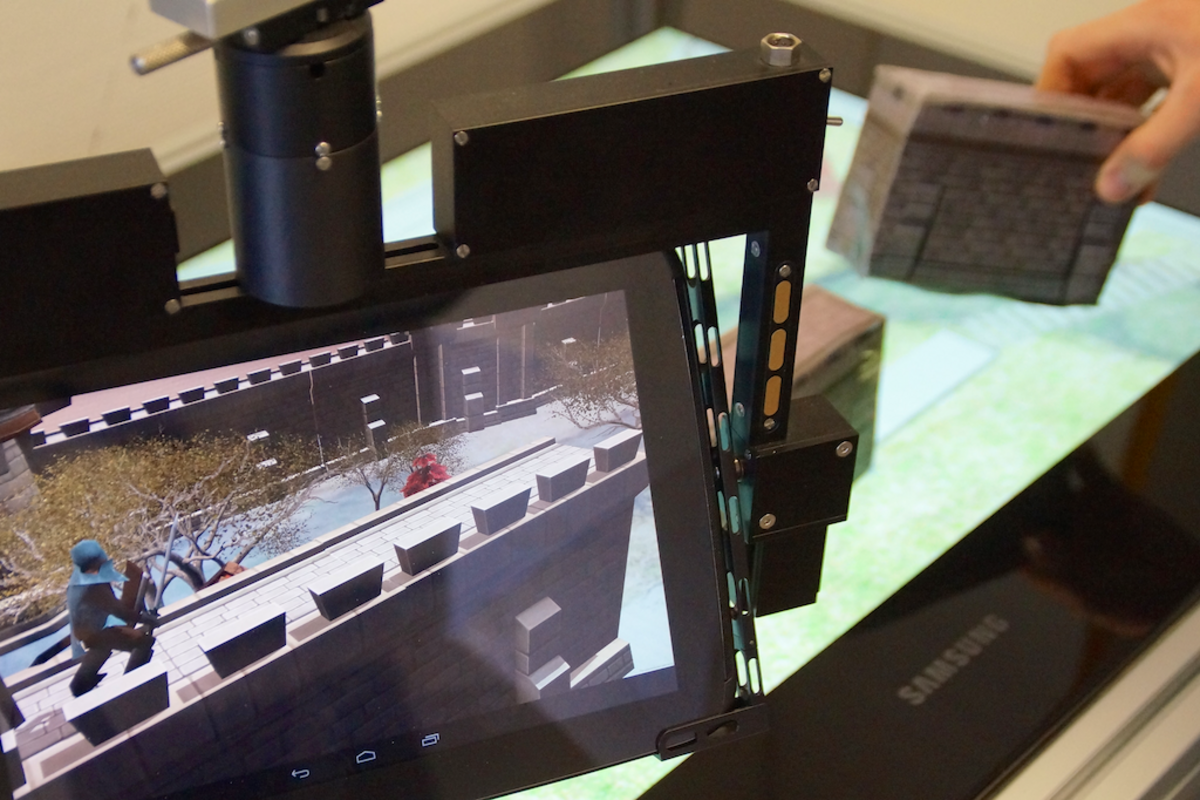

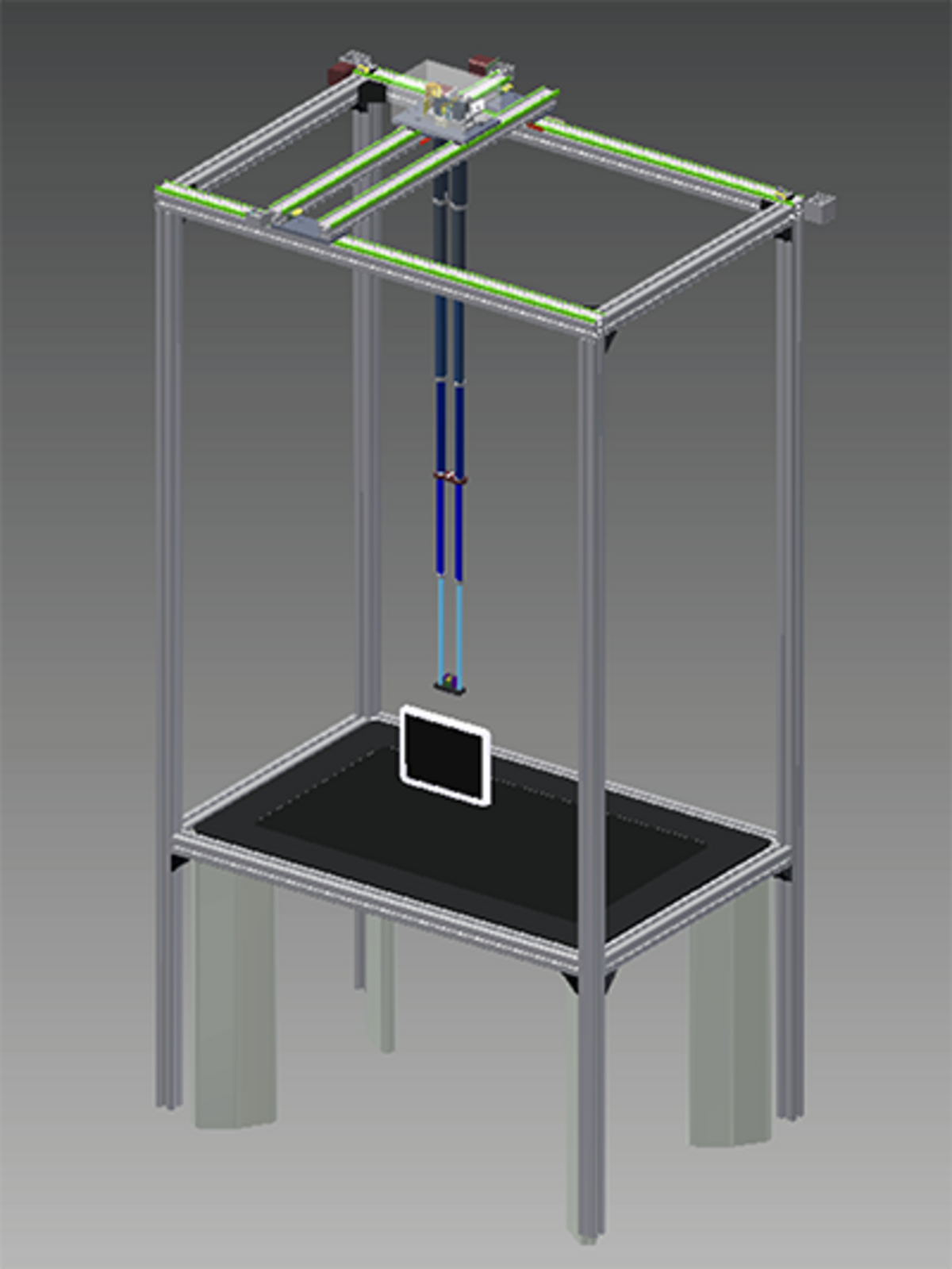

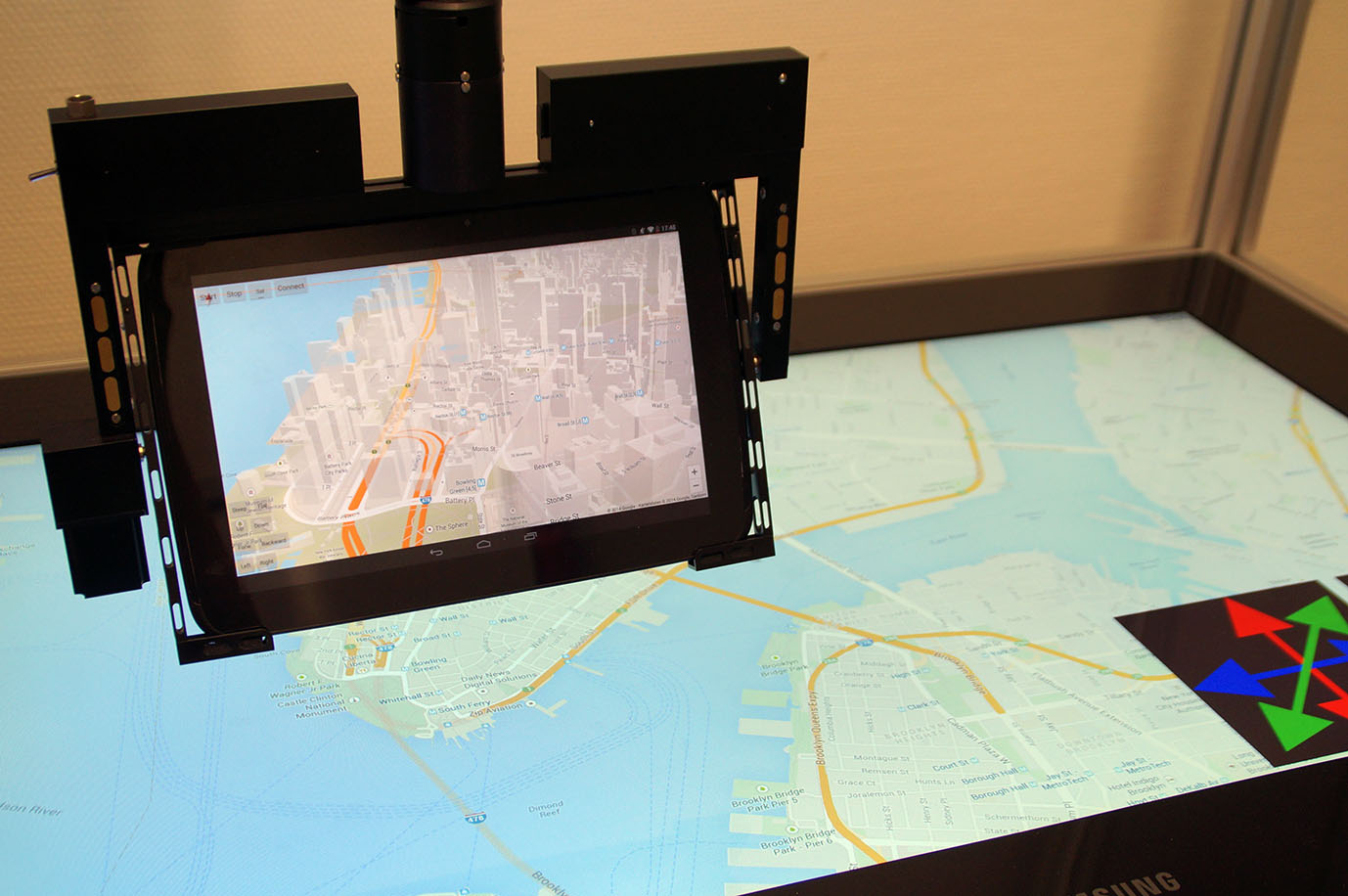

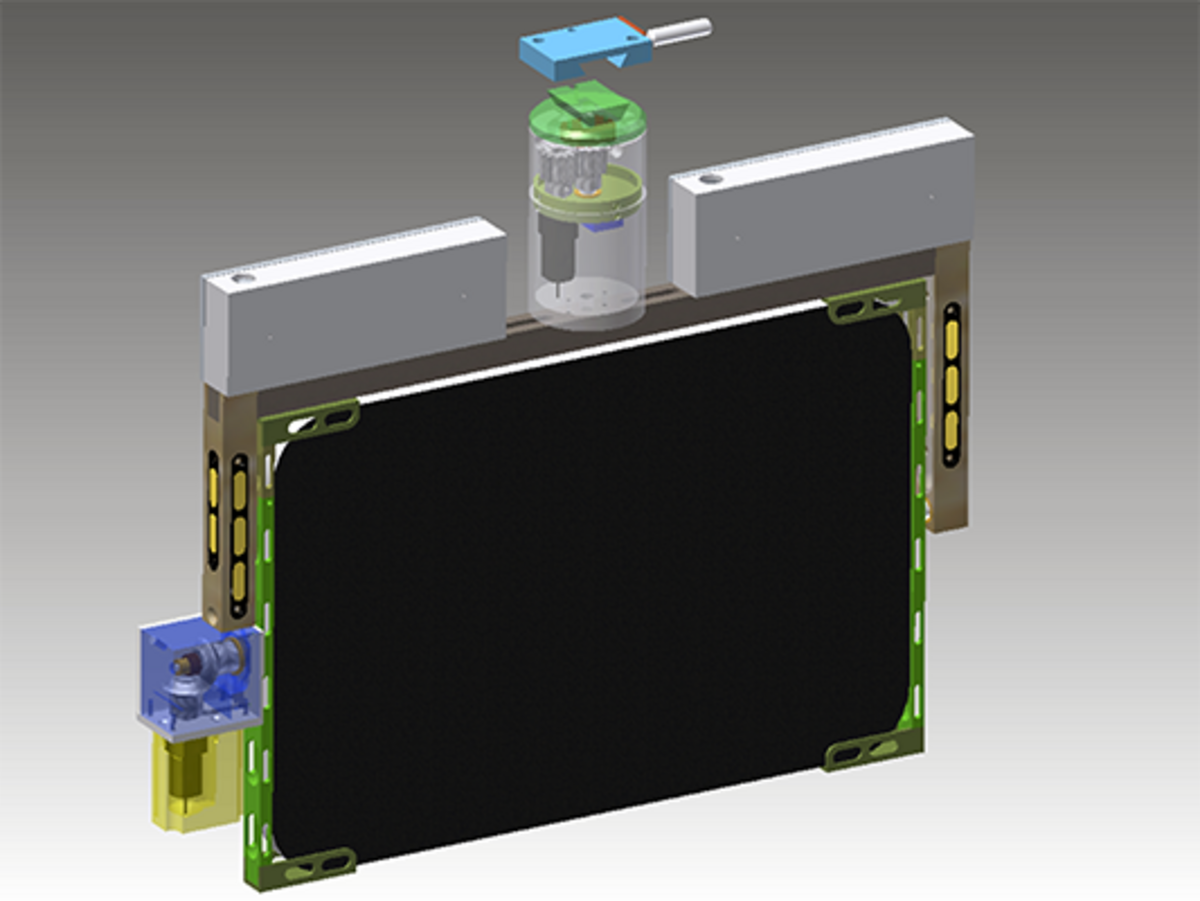

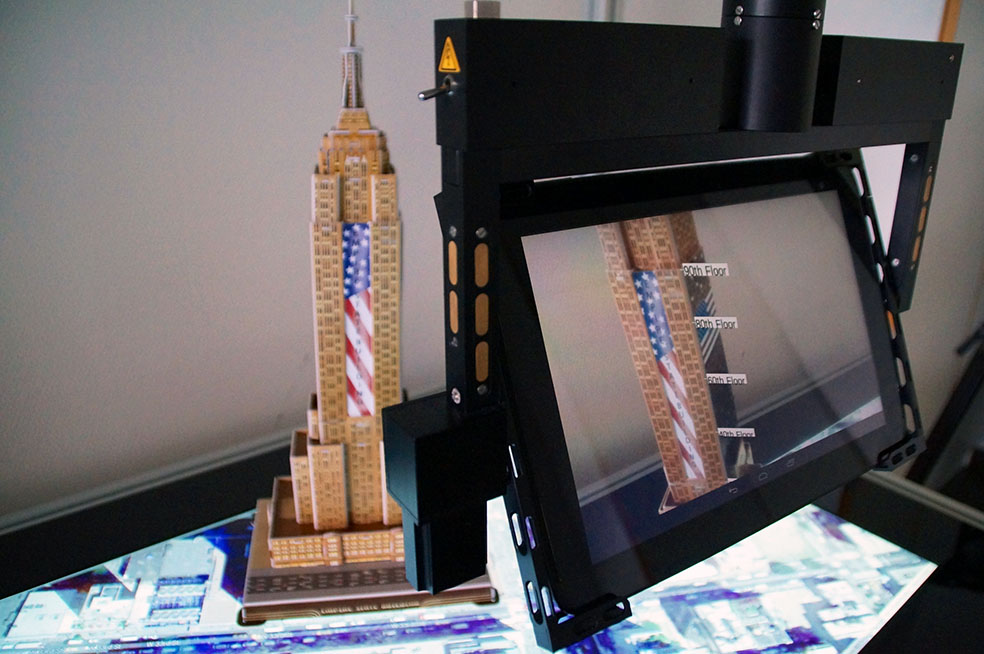

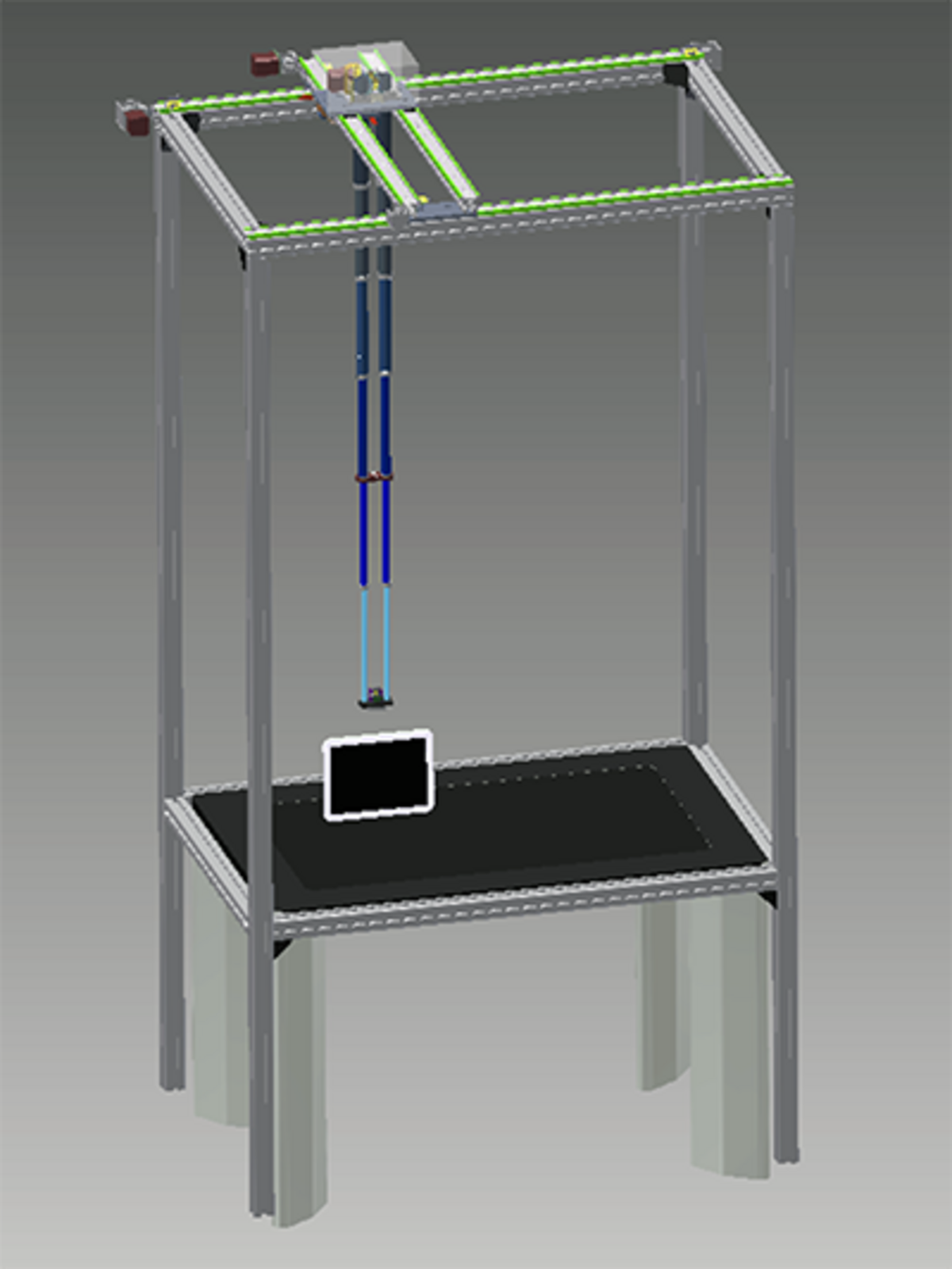

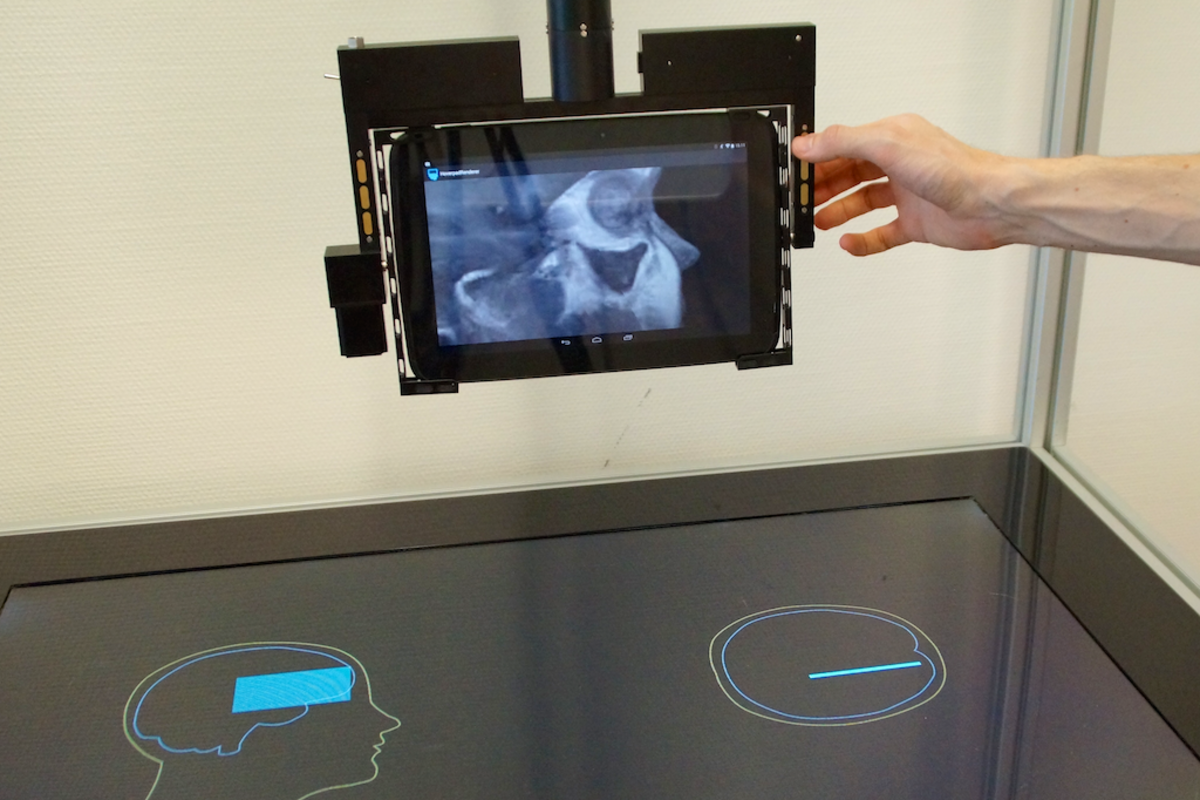

Hover Pad's crane construction allows controlling the position and angle of a tablet computer in space above an (optional) interactive surface. Five degrees of freedom are supported: x-, y-, and z-position, as well as pitch and yaw of the tablet.

The "Inventor" CAD files containing the blueprints and construction information are available for download at:

https://github.com/MHCI/HoverPad

 Software Toolkit

Along with the hardware plans, we provide the software toolkit components that are necessary to control the tablet's motion in space.

The sources and documentations are available at:

https://github.com/MHCI/HoverPad
