Location
Lise-Meitner-Str. 16, room 1.43
Contact
Prof. Dr. Sabine Richert
sabine.richert(at)uni-ulm.de
Dr. Dinar Abdullin
dinar.abdullin(at)uni-ulm.de

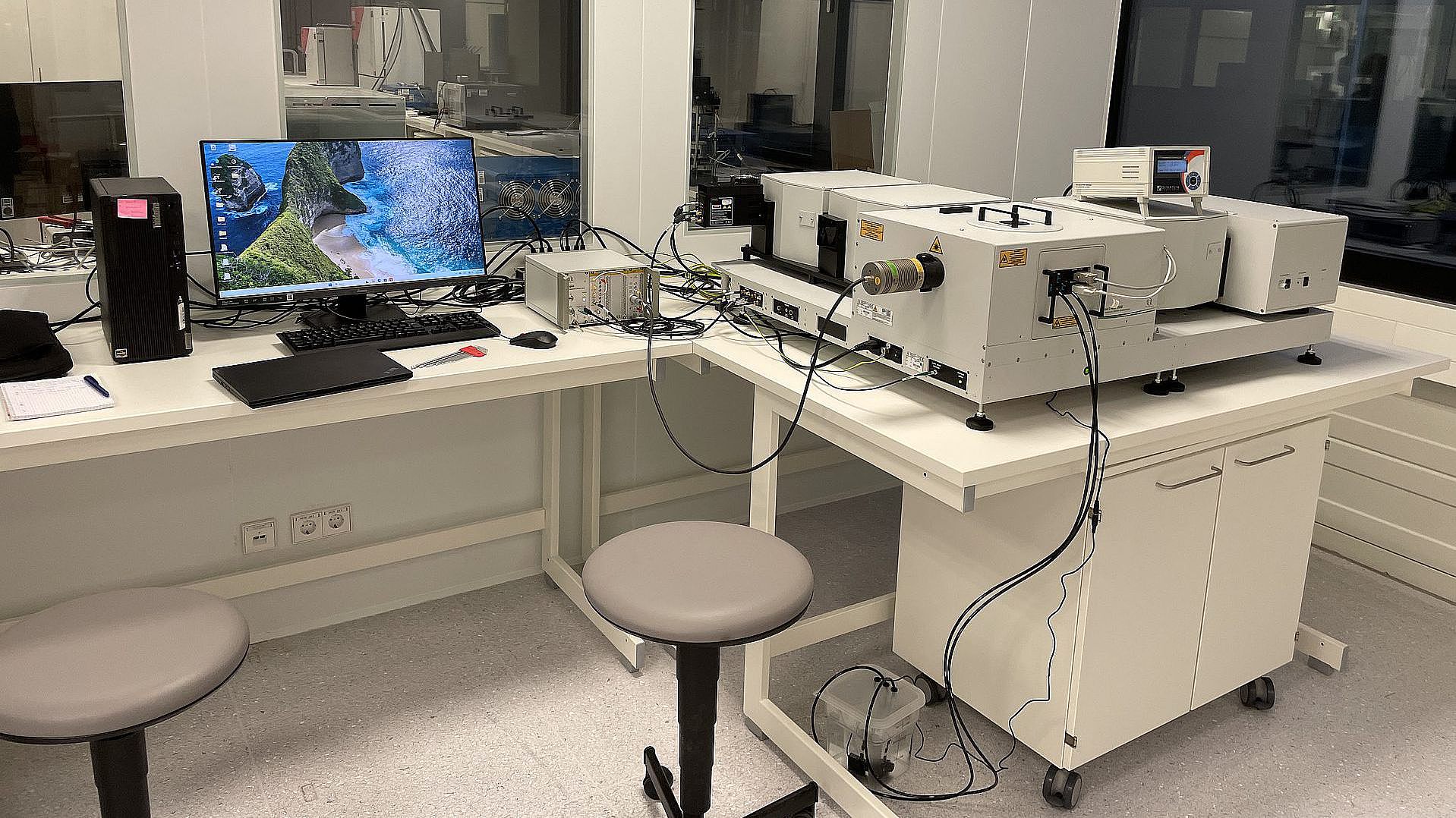

Photoluminescence/Fluorescence spectrometer
PicoQuant FluoTime 300
- Steady-state and time-resolved (TCSPC, MCS) operation mode
- Fully automated system with timing from ps to s
- SNR > 32 000:1 for water Raman
- Single monochromator in excitation and double monochromator in emission
- PicoHarp 330 with 1 ps base resolution and <0.68ns dead time
- Fluorescence Spectra
- Fluorescence Lifetime Decay
- Phosphorescence Lifetime Decay
- Fluorescence Anisotropy
- Absolute Quantum Yield
- Emission-Excitation Matrix (EEM)
- Time-Resolved Photoluminescence (TRPL)
- Time-resolved Emission Spectra (TRES)
- 200 – 900 nm CW Xenon lamp (300 W)
- 375 nm (D-C-375, 40 W), 405 nm (D-C-405, 50 W), and 515 nm (D-C-515, 40 W) lasers
- Single cuvette holder (temperature stabilization via external water bath, -15 to 110 °C, steering)
- Four position cuvette holder (temperature stabilization via Peltier element, -15 to 110 °C, steering)
- Oxford Instruments cryostat (2.3 to 300 K) controlled by iTC
