Walking with atoms
Chemical bond making and breaking recorded in action

Ulm University

Scientists have for the first time captured and filmed atoms bonding, using advanced microscopy methods they captured a moment of breaking a chemical bond, around half a million times smaller than the width of a human hair.Ever since it was proposed that atoms are building blocks of the world, scientists have been trying to understand how and why they bond to each other. Be it a molecule (which is a group of atoms joined together in a particular fashion), or a block of material or a whole living organism, ultimately, everything is controlled by the way atoms bond, and the way bonds break.

The challenge is that lengths of chemical bonds are between 0.1 – 0.3 nm, about half a million times smaller than the width of a human hair, making direct imaging of bonding between a pair of atoms difficult.  Advanced microscopy methods, such as atomic force microscopy (AFM) or scanning tunnelling microscopy (STM), can resolve atomic positions and measure bond lengths directly, but filming chemical bonds to break or to form, with spatiotemporal continuity, in real time, still remains one of the greatest challenges of science.

This challenge has been met by a research team from the UK and Germany led by Professor Ute Kaiser, head of the Electron Microscopy of Materials Science in the University of Ulm, and Professor Andrei Khlobystov in the School of Chemistry at the University of Nottingham they have published ‘Imaging an unsupported metal-metal bond in dirhenium molecules at the atomic scale’ in Science Advances, a journal of the American Association for the Advancement of Science covering all aspects of scientific endeavour.

Atoms in a nano test tube

This group of researchers are known for their pioneering use of transmission electron microscopy (TEM) to film ‘movies’ of chemical reactions at the single-molecule level, and dynamics of tiny clusters of metal atoms in nanocatalysts utilise carbon nanotubes – atomically thin hollow cylinders of carbon with diameters at the molecular scale (1-2 nm) as miniature test tubes for atoms.

"Nanotubes help us to catch atoms or molecules, and to position them exactly where we want. In this case we trapped a pair of rhenium (Re) atoms bonded together to form Re2. Because rhenium has a high atomic number it is easier to see in TEM than lighter elements, allowing us to identify each metal atom as a dark dot" said Professor Andrei Khlobystov.

Professor Ute Kaiser, added: “As we imaged these diatomic molecules by the state of the art chromatic and spherical aberration corrected SALVE TEM, we observed the atomic-scale dynamics of Re2adsorbed on the graphitic lattice of the nanotube and discovered that the bond length changes in Re2in a series of discrete steps.”

A dual use of electron beam

The group have rich track record of using electron beam as a tool for dual-purpose: precise imaging of atomic positions andactivation of chemical reactions due to energy transferred from fast electrons of the electron beam to the atoms. The “two-in-one” trick with TEM allowed these researchers to record movies of molecules reacting in the past, and now they were able to film two atoms bonded together in Re2‘walking’ along the nanotube in a continuous video. Dr Kecheng Cao, Research Assistant at Ulm University who discovered this phenomenon and performed the imaging experiments, said: ‘It was surprisingly clear how the two atoms move in pairs, clearly indicating a bond between them. Importantly, as Re2moves down the nanotube, the bond length changes, indicating that the bond becomes stronger or weaker depending on the environment around the atoms.’

Breaking the bond

After a period of time, atoms of Re2exhibited vibrations distorting their circular shapes onto ellipses and stretching the bond. As the bond length reached a value exceeding the sum of atomic radii, the bond snapped and vibration ceased, indicating that the atoms became independent of one another. A little later the atoms joined together again, reforming a Re2molecule.

Dr Stephen Skowron, Postdoctoral Research Assistant at University of Nottingham who carried out the calculations for Re2bonding, said: ‘Bonds between metal atoms are very important in chemistry, particularly for understanding magnetic, electronic, or catalytic properties of materials. What makes it challenging is that transition metals, such as Re, can form bonds of different order, from single to quintuple bonds. In this TEM experiment we observed that the two rhenium atoms are bonded mainly through a quadruple bond, providing new fundamental insights into transition metal chemistry’.

Electron microscope as a new analytical tool for chemists

Andrei Khlobystov, said: ‘To our knowledge, this is the first time when bond evolution, breaking and formation was recorded on film at the atomic scale. Electron microscopy is already becoming an analytical tool for determining structures of molecules, particularly with the advance of the cryogenic TEM recognised by 2017 Nobel Prize in Chemistry. We are now pushing the frontiers of molecule imaging beyond simple structural analysis, and towards understanding dynamics of individual molecules in real time.’

The team believe that one day in the future electron microscopy may become a general method for studying chemical reactions, similar to spectroscopic methods widely used in chemistry labs.

Kecheng Cao, Stephen T. Skowron, Johannes Biskupek, Craig T. Stoppiello, Christopher Leist, Elena Besley, Andrei N. Khlobystov, Ute Kaiser. Imaging an unsupported metal-metal bond in dirhenium molecules  at the atomic scale. Science Advances. https://doi.org/10.1126/sciadv.aay5849

Text: University of Nottingham

Dr. Kecheng Cao and Prof. Ute Kaiser
First author Dr. Kecheng Cao and Prof. Ute Kaiser, group leader of the Department of Electron Microscopy Group of Materials Science at Ulm University (photo: private)

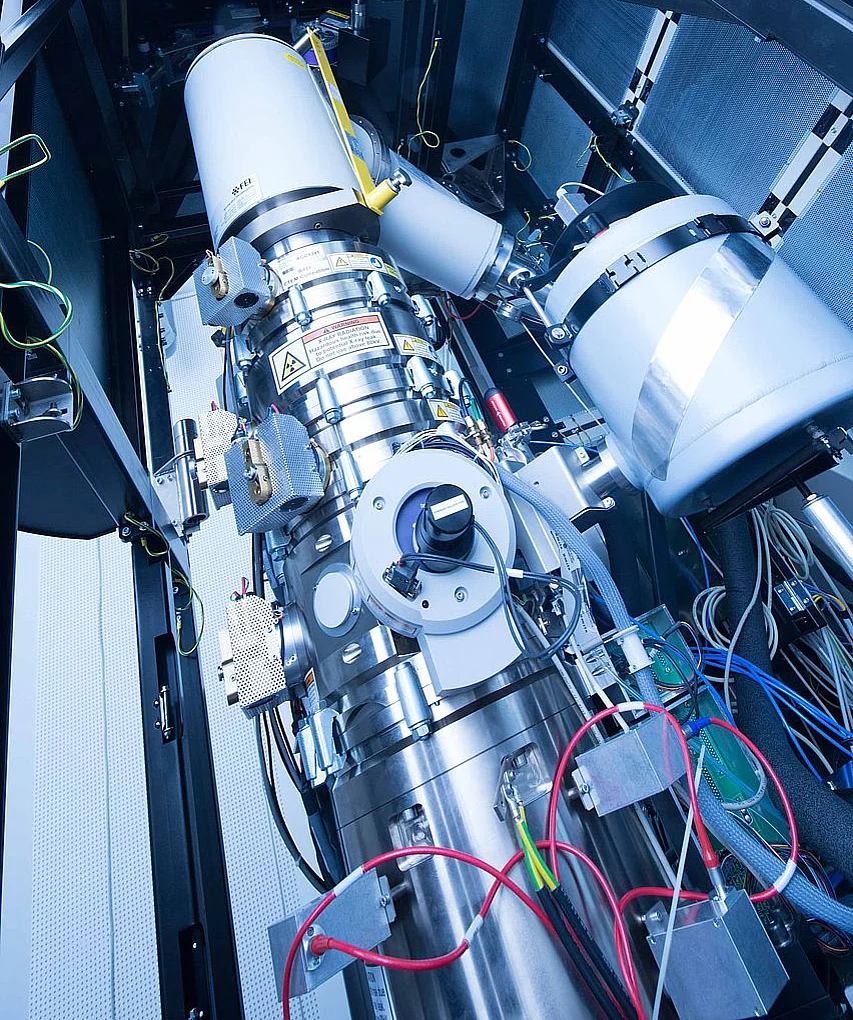

Interior view of the supermicroscope SALVE
Interior view of the supermicroscope SALVE (photo: Heiko Grandel)

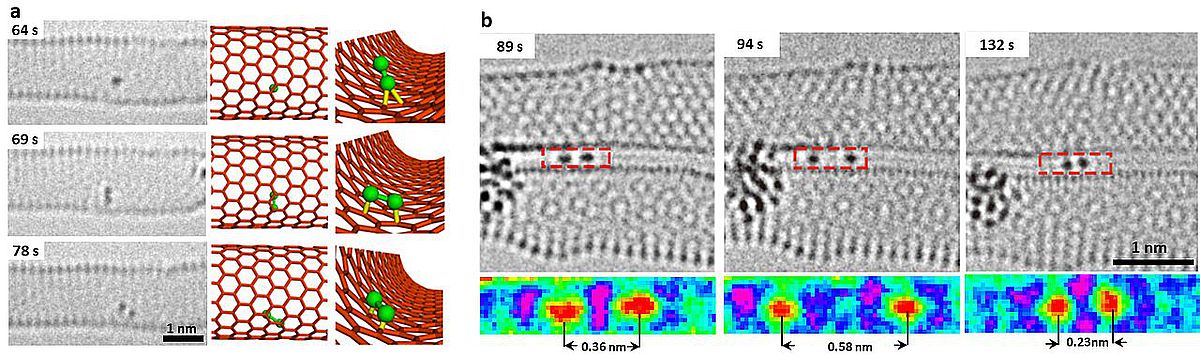

Experiments in the microscopes
The figure shows experiments in the two microscopes TITAN (a) and SALVE (b): In a) you see three snapshots of the moving Re2 molecule together with the corresponding structural model In b) the molecule is located in the "van der Waals Gap" between two single-walled carbon nanotubes. To get there, the bond had to be broken and then re-formed. From the corresponding false-color images, the distance between the two rhenium atoms in the molecule can be seen (source: Materials Science Electron Microscopy)
Dynamics of re-dimers (Source: Materials science electron microscopy
